Noctua Releases Public CAD Files For Its Fans, But Tweaks Blade Geometry To Prevent 3D Printed Clones

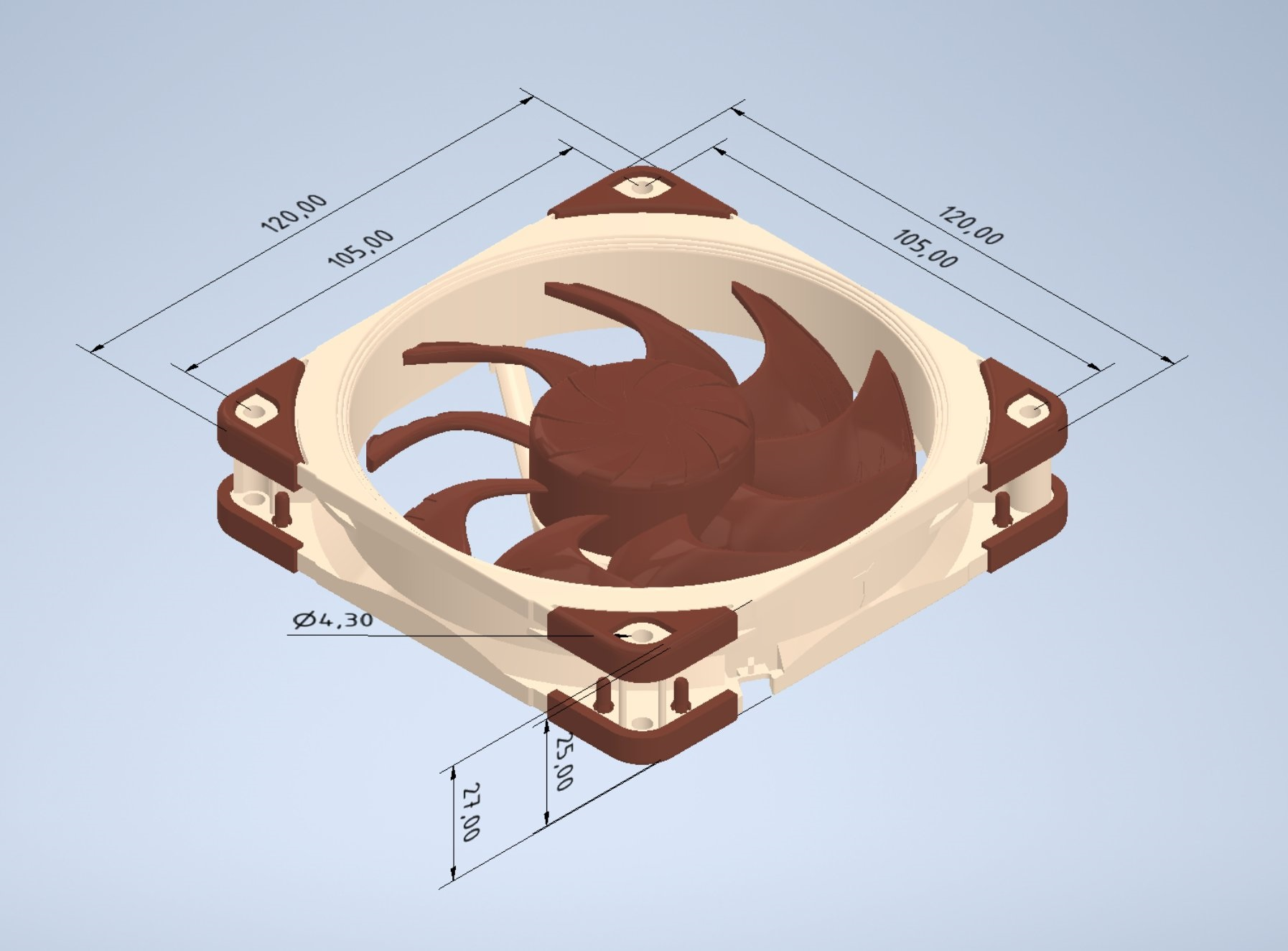

Noctua has officially made public 3D CAD models available for many of its fan products, giving PC builders, case designers, modders, and engineers an easier way to design around its hardware. On its official 3D CAD models page, the company says these files accurately represent mounting dimensions and the overall external dimensions of the product, making them useful for mechanical design, renderings, animations, and integration into custom projects.
That said, this is not an open invitation to print your own working Noctua fans. Noctua clearly states that certain features, including fan impeller geometries, have been slightly modified in the public CAD files in order to protect its intellectual property. The company says these changes keep the models visually close to the real products, but they are not fully representative of the actual internal structures that define performance.
This is the key detail behind the release. While the files are accurate enough for product integration and visual planning, Noctua explicitly warns users not to use them for performance simulations or 3D printing. It also notes that internal elements such as fan impellers and frame structures are not fully representative of the real hardware, which means any attempt to reproduce the company’s fans from these public assets would not deliver the same performance, airflow behavior, or acoustic profile as the real product.
People can gladly print the models, of course, but please keep in mind that they are intended for mechanical design and visualisation purposes only. As stated on our website: "These public 3D CAD models accurately represent mounting dimensions as well as the overall external…
— Noctua (@Noctua_at) April 27, 2026
From a practical standpoint, the move is still a major win for the PC hardware ecosystem. Fan placement, radiator clearance, cooler compatibility, custom bracket development, and small form factor case design all benefit from accurate CAD data. Instead of relying on manual measurements or unofficial community models, designers can now work from official Noctua provided assets when planning mechanical layouts and showcase renders.
At the same time, Noctua has drawn a very deliberate line between supporting integration and enabling replication. The company disclaimer says the CAD models are provided solely for reference, visualisation, and integration purposes, and may not be used, in whole or in part, for the manufacture, reproduction, or commercialisation of the products they represent or any substantially similar products. That makes the company’s position very clear: these are engineering convenience files, not manufacturing blueprints.
For the enthusiast market, this is a smart and measured move. Noctua gets to support modders, system integrators, and industrial users with official geometry data while preserving the aerodynamic and acoustic design work that defines its brand. In a cooling market where blade shape, frame tolerances, and airflow behavior directly affect noise and thermal performance, protecting impeller geometry is not just about legal control. It is also about preserving the engineering edge that makes Noctua products stand out.
It is also worth noting that few consumer cooling brands publicly offer this level of official CAD access. That alone makes the release notable. For anyone building a custom PC enclosure, workstation, render scene, or specialized airflow layout, the files should save time and improve design accuracy. For anyone hoping to clone a Noctua fan with a 3D printer, however, the company has already closed that door.
Do you think more cooling brands should release official CAD files for modders and system designers, even if internal blade geometry stays protected?
