Leaked Apple AI Server Photos Point to Dense M5 Based Private Cloud Compute Hardware

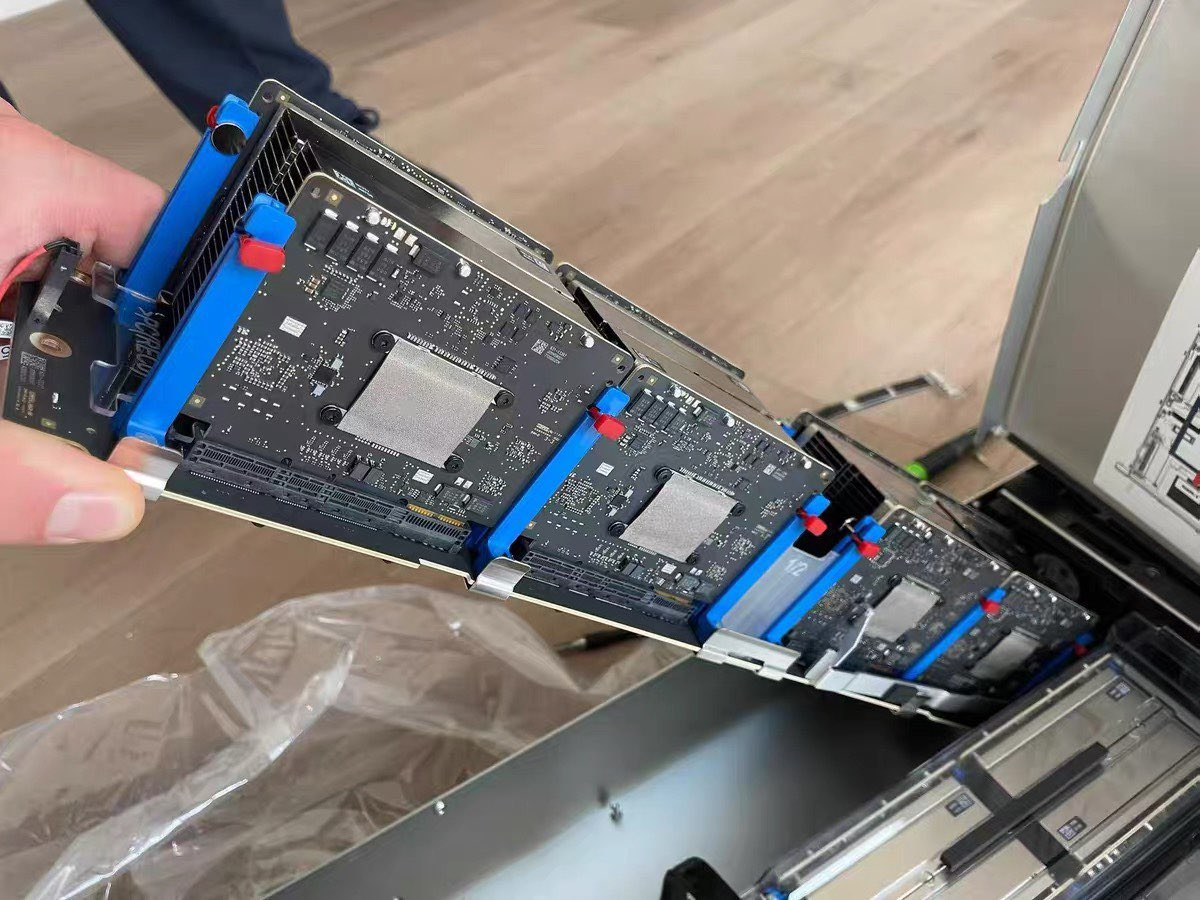

Leaked images may have provided the clearest look yet at the hardware powering Apple’s Private Cloud Compute infrastructure, with a newly pictured server reportedly using multiple M5 chips packed inside a highly dense rack design. The images were shared by hsuchingpo and appear to show Apple designed server hardware containing 4 identical compute sections, each carrying 8 removable processing boards. If the configuration is accurately identified, a single enclosure could therefore contain 32 Apple silicon processors.

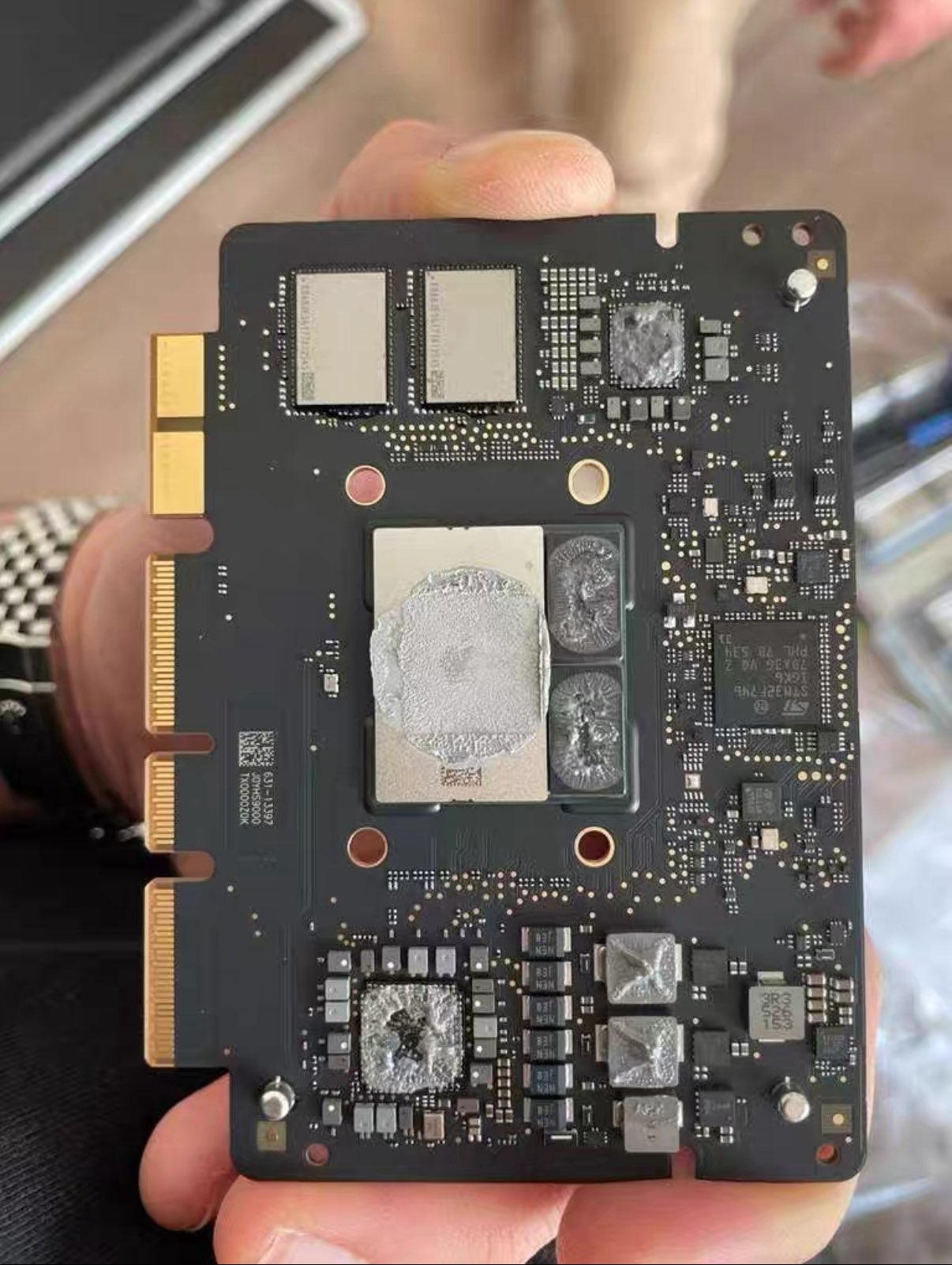

Each processor appears to sit on a custom board with its own memory, NAND storage and cooling hardware, while large heatsinks and dedicated airflow channels run through the enclosure. The leaked hardware has been described as M5 based, although Apple has not publicly confirmed the processor configuration or whether the pictured system represents final production hardware. Earlier reports had suggested Apple could deploy higher end M5 Pro or M5 Max silicon for server workloads, making the apparent use of standard M5 chips notable if confirmed.

苹果M5服务器#apple pic.twitter.com/BJE4W0qPWF

— 徐静环境 (@hsuchingpo) August 24, 2026

The approach could prioritize efficiency and density instead of maximizing the performance of each individual processor. Apple’s M5 includes a 16 core Neural Engine and 153.6 GB/s of unified memory bandwidth, and a large group of lower power chips could allow Apple to scale inference capacity while keeping thermal and power requirements under tighter control. The modular design visible in the images could also simplify maintenance by allowing individual compute boards to be replaced without removing an entire server.

Apple has already confirmed that its Private Cloud Compute nodes use custom Apple silicon and purpose built server hardware designed around technologies including Secure Enclave and Secure Boot. PCC handles Apple Intelligence workloads that are too complex to remain entirely on the user’s device, while Apple says personal data sent for processing is not stored and cannot be accessed even by Apple. The company expanded the platform further in 2026, introducing new server based Apple Foundation Models and extending selected PCC workloads to NVIDIA hardware hosted through Google Cloud while maintaining its privacy architecture.

The leaked hardware also appears consistent with servers already shown inside Apple’s Houston manufacturing operation. Apple confirmed that it began producing advanced AI servers in Houston in 2025 and has since expanded production, with those systems being deployed across its United States data centers to support Apple Intelligence and Private Cloud Compute. The company opened its Advanced Manufacturing Center at the same Houston site in August 2026 after already shipping production AI servers from the facility.

The most interesting part of this leak is not simply that Apple may be using M5 chips in servers. It is the architecture around them. Instead of approaching AI infrastructure purely through large accelerator cards, Apple appears to be applying the same efficiency focused philosophy behind its consumer silicon to dense cloud inference. Packing dozens of relatively efficient Apple silicon processors into a compact enclosure could give Apple tight control over performance, security, power consumption and software integration. The bigger question is how far this architecture can scale as Apple Intelligence moves toward larger models and increasingly complex agentic workloads.

Could Apple’s dense M5 server strategy become a serious alternative to traditional GPU heavy AI infrastructure for inference workloads?
